Drum Type Magnetic Separator

Name: Drum Type Magnetic Separator
Brand: REGAL MAGNETICS
Price: 75000 INR
Availability: InStock

75000 INR/Unit

Get a Price/Quote

Product Details:

Power Supply Electric
Power 0.5 HP to 2 HP (depends on model)
Frequency 50/60 Hz
Surface Finish Painted/Powder Coated
Application Removal of magnetic contaminants from materials
Material Mild Steel/SS 304 Available
Voltage 220-240 V AC
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Drum Type Magnetic Separator Price And Quantity

Minimum Order Quantity 1 Piece
Price 75000 INR/Unit

Drum Type Magnetic Separator Product Specifications

Composite Mild Steel Body with Magnetic Drum
Shape Cylindrical Drum
Magnet Grade N35/N42 or as required
Voltage 220-240 V AC
Capacity Up to 10 Tons/hour (model dependent)
Usage & Applications Food, Plastic, Chemical, Mineral, Recycling Industries
Surface Finish Painted/Powder Coated
Product Type Magnetic Devices
Application Removal of magnetic contaminants from materials
Frequency 50/60 Hz
Size Range Drum Diameter: 300-600 mm, Drum Length: 300-1500 mm
Color Green
Material Mild Steel/SS 304 Available
Magnet Type Permanent Magnet
Weight Approx. 150-300 kg (varies with size)
Power Supply Electric
Magnet Category Other
Power 0.5 HP to 2 HP (depends on model)

Feeding Method Hopper Feed
Installation Type Floor Mounted
Noise Level Low
Customisation Size and Magnet Strength Customisable
Drive Type Electric Motor
Safety Features Protective Guards and Enclosures
Drum Speed 15-30 RPM
Operation Mode Automatic Continuous
Discharge Method Manual or Belt Conveyor
Maintenance Low and Easy Maintenance
Minimum Particle Size Removed As small as 0.1 mm

Drum Type Magnetic Separator Trade Information

FOB Port Gujarat
Payment Terms Cash on Delivery (COD), Cheque, Days after Acceptance (DA), Letter of Credit (L/C), Letter of Credit at Sight (Sight L/C), Delivery Point (DP), Cash Against Delivery (CAD), Cash in Advance (CID), Cash Advance (CA)
Supply Ability 1 Piece Per Week
Delivery Time 7 Days
Main Domestic Market All India

Product Description

Drum Type Magnetic Separator

we are manufacturer , supplier , distributors of Drum Type Magnetic Separator in Ahmedabad , Gujarat , India.

Material	Mild Steel
Capacity	1 TPH To 2 TPH
Voltage	220 V
Size Of Feed Opening	400 mm
Brand	Regal Magnetics

Efficient Contaminant Removal

Our Drum Type Magnetic Separator excels at extracting extremely fine magnetic particles, with removal capabilities for contaminants as small as 0.1 mm. This guarantees purity across a wide variety of processing materials, enhancing product quality and safety for industries such as food, plastics, minerals, and recycling.

Versatile and Customizable Design

Engineered for adaptability, the separator is available in multiple size ranges with drum diameters from 300 to 600 mm and lengths up to 1500 mm. Magnet strength can also be tailored, ensuring optimal performance for your specific material flow and application demands.

Low Maintenance and Enhanced Safety

Built with durable materials and a simple electric drive system, the separator offers low and easy maintenance. Protective guards and enclosures are standard, prioritizing operator safety. The automated continuous operation not only increases productivity but also simplifies day-to-day handling.

FAQ's of Drum Type Magnetic Separator:

Q: How does the drum type magnetic separator operate?

A: The separator uses an electric motor to rotate a cylindrical drum fitted with strong permanent magnets. As material is fed through the hopper, magnetic contaminants are attracted to the drum's surface and separated while cleaned material is discharged either manually or via a belt conveyor.

Q: What industries benefit from using this magnetic separator?

A: Industries such as food processing, plastics, chemicals, minerals, and recycling benefit greatly by using the separator to remove magnetic contaminants, improving final product purity and safety.

Q: When should I choose a custom size or magnet strength?

A: Opt for custom size or magnet strength when your processing material's flow rate, contamination level, or specific physical properties require tailored separation efficiency. Our team can help you determine the optimal configuration.

Q: What is the maintenance process for this equipment?

A: Maintenance is straightforward and involves periodic visual inspection, occasional cleaning of the magnetic drum, and routine checks of the drive system. The durable design helps ensure minimal downtime and long-term reliability.

Q: How do the installed safety features protect operators?

A: The separator is equipped with protective guards and enclosed areas around moving parts, reducing the risk of accidental contact and enhancing operational safety during use and maintenance.

Q: Where should the separator be installed for maximum effectiveness?

A: For best results, install the separator on a stable, level floor close to the material feed point in your process line. Floor mounting supports both accessibility and operational stability.

Q: What are the benefits of choosing this separator over other separation methods?

A: This magnetic separator offers highly efficient removal of fine particles, continuous automatic operation with low energy consumption, minimal maintenance requirements, and robust safety features, making it a cost-effective and reliable solution for contaminant removal.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Magnetic Separator' category

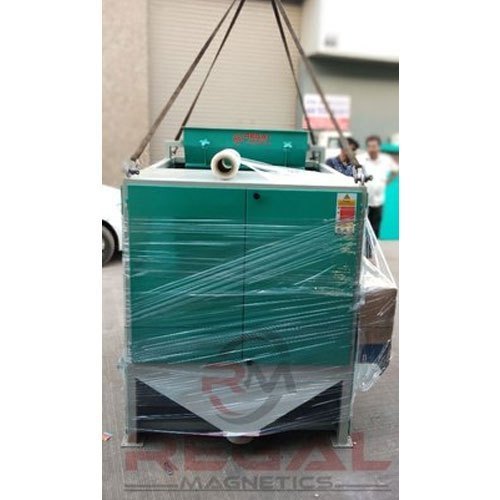

Single Drum Separator Price : 300000 INR/Unit Minimum Order Quantity : 1 Voltage : 220/380/415 V AC Color : Green (custom colors available) Size Range : Drum Diameter: 300 mm to 1200 mm, Length: 300 mm to 2000 mm Product Type : Other, Single Drum Magnetic Separator Power : 1 HP to 5 HP (depending on model) Magnet Category : Other, Drum Separator Magnet Power Supply : Electric Weight : 350 kg to 1200 kg (varies by size and design) Magnet Grade : NdFeB / Ferrite Shape : Other, Rectangular cabinet with cylindrical drum Composite : Mild Steel / Stainless Steel construction Usage & Applications : Magnetic separation, iron removal, ore beneficiation, material purity enhancement Capacity : 500 kg/hr to 20 ton/hr Material : Mild Steel, Stainless Steel, HighGrade Magnets Frequency : 50/60 Hz Surface Finish : Powdercoated / Painted Application : Separation of magnetic materials from nonmagnetic materials in industries like minerals, chemicals, food, flour mills, plastics, recycling, aggregate, etc. Magnet Type : Other, Permanent magnet / Electromagnetic (option based on requirement)
